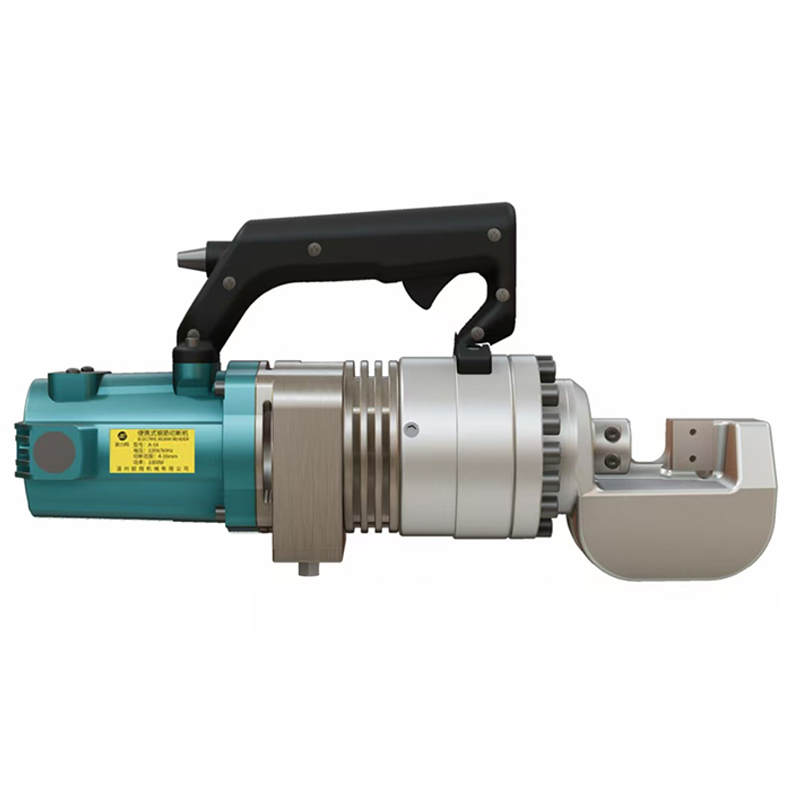

Structure design of portable hand-held steel bar cutting machine

A hand-held steel cutting machine is an efficient and portable tool, which is widely used in construction, demolition,

and disaster rescue scenarios for rapid and accurate cutting of steel bars. Its structural design mainly includes the following key parts:

1. Hydraulic Drive system: the hand-held steel breaker is usually hydraulically driven and equipped with a high-efficiency hydraulic pump,

high-pressure tubing, and cutting blades. During operation, the high-pressure oil is generated by manually operating the hydraulic rod,

and the oil is transmitted to the cutting blade through the oil pipe to drive it to move rapidly and realize the rapid cutting of the steel bar.

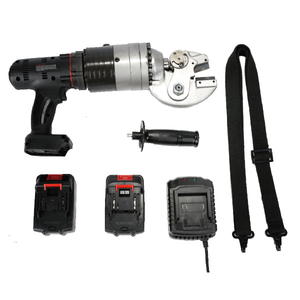

2. Electric drive system: in addition to hydraulic drive, some hand-held steel cutting machine also uses electric drive mode,

through the motor to provide power, drive device will be the power of the motor into cutting blade movement, fast cutting of reinforcing steel bar.

Such designs are generally lighter, consume less power, and work reliably.

3. Cutting Blade and guide design: A high-quality cutting blade and accurate guide mechanism are the keys to ensuring cutting accuracy.

The blade needs to have good hardness and sharpness, and the guiding design ensures the straightness and stability of the cutting process,

even in a narrow space, and can also ensure the accuracy of the cutting.

4. Ergonomic design: the hand-held steel cutting machine is designed with the operator's comfort and portability in mind.

It usually has a balanced weight distribution and an ergonomic grip shape to ensure accurate control of the tool at all angles and positions.

5. Safety precautions: when operating the hand-held steel cutting machine, appropriate safety equipment, such as protective glasses, gloves,

and protective shoes, must be worn to prevent injuries caused by splashes generated during cutting.

The equipment itself may also be equipped with an insurance mechanism to ensure safe use during operation.

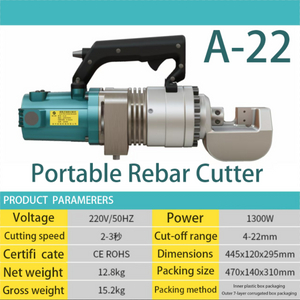

6. Technical parameters: the technical parameters of the hand-held steel bar cutter include shearing force, shearing time, normal shearing diameter,

maximum shearing diameter, minimum steel bar cutting diameter, shearable steel bar hardness, overall size, machine size, weight, voltage, no-load power, etc.,

these parameters determine the scope and performance of the equipment.

Through the combination of these structural designs and advanced technology,

the hand-held steel-cutting machine not only improves construction efficiency but also ensures the safety and accuracy of operation.
