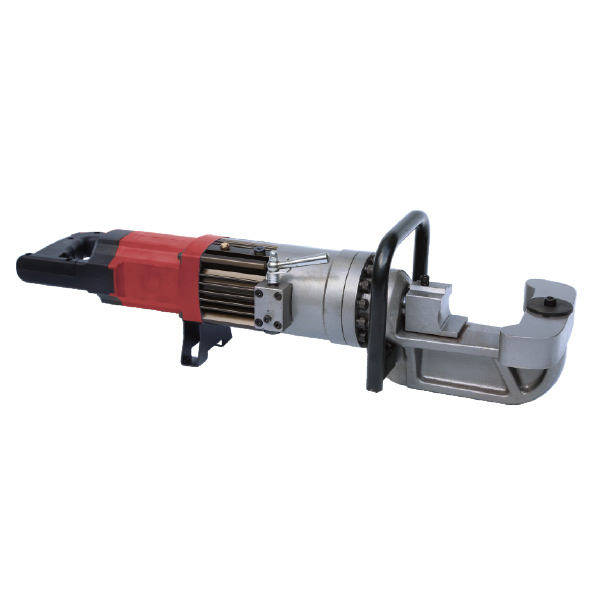

16-25mm rebar straightening machine

Brand: PROSHARP
Model: HRS-25
Power: 1200W
Rebar Diameter: 16mm/0.63inch - 25mm/0.985inch
Straightening Speed: 4-5S
Availability:
Quantity:

Portable Rebar Straightening MachineBrought to you by PROSHARP brand


HRS-25 Rebar Straightening Machine Brief:

· HRS-25 Rebar Straightening Machine–Used to straighten steel bars in construction sites, the product is light in weight, small in size and easy to carry. The operation process is simple and safe!

· HRS-25 Rebar Straightening Machine–Packed in a plastic suitcase, with additional hydraulic oil pot and tool kit.


HRS-25 Rebar Straightening Machine Advantages:

· Motor: Newly upgraded high-power 1200W carbon brush motor, strong power, low noise and long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: original four-piston hole design, the straightening efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Fast straightening speed: Straighten 16-25mm steel bars within 4-5 seconds

· Light weight: 18KG, easy to carry, maneuverable and easy to use


HRS-25 Rebar Straightening Machine Technical Parameters:

Brand

PROSHARP

Model

HRS-25

Type

Rebar Straightening Machine

Colour

Red, blue

Voltage

220V/110V

Power

1200W

Cutting speed

4-5S

Maximum. Rebar

25 mm/0.985 inch

Minimal. Rebar

16 mm/0.63 inch

Rebar material type

Medium carbon steel, low carbon steel, round steel, thread steel

Handle length

Pull back 14CM



HRS-25 Rebar Straightening Machine Product Info:

Product Size

Length(mm)

675

Width(mm)

185

Height(mm)

190

Weight(kg)

18kg

Package Size

Length(mm)

720

Width(mm)

220

Height(mm)

240

Weight(kg)

24kg

Toolbox includes

Hydraulic oil can, tool kit, operation manual, inner PE, outer 7-layer corrugated paper


HRS-25 Product Overview      Click Here

16-25mm Rebar Straightening Machine.pdf


Rebar Straightening Machine Manual      Click Here

Rebar Straightening Machine Catalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual     Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
