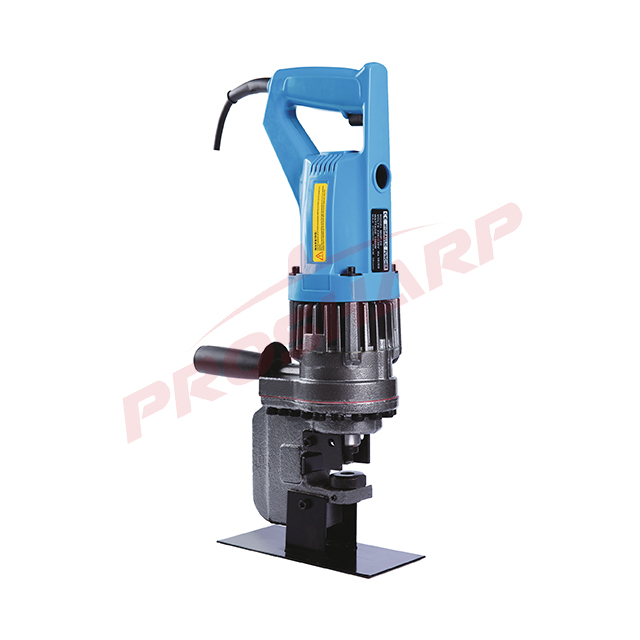

JP-20 Electric photovoltaic support punching machine

Motor power: 1200W
Punching die: Round die
Max. piercing dia. : 13mm
Min. piercing dia. : 6.5mm
Max. sheet thickness: 4mm
Voltage: 110V/220V/230V
Punching speed: 2-3S
Net weight: 12KG
Gross weight: 17KG
Height: 49cm

Availability:
Quantity:

Electrohydraulic type photovoltaic support punching machine tool description: suitable for photovoltaic support drilling, section steel, channel steel, I - beam drilling operation, body small volume, light weight, easy to operate, labor saving and fast punching Point. Accurate positioning without deviation, you can make a variety of shapes of punching Die, hydraulic punching can be removed from drilling when the chip, operation When safe and stable as well as cleaner, can be carried to the site for large quantities A lot of punching work.


Model

JP20 Electric photovoltaic support   punching machine

Motor power

1200W

Punching die

Round die

Max. piercing dia.

13mm

Min. piercing dia.

6.5mm

Max. sheet thickness

4mm

Voltage

110V/220V/230V

Punching capacity

It is prohibited to punch the maximum   aperture and thickness shown in the table above (Angle iron and 4mm iron   plate)

Punching speed

2-3S

Net weight

12KG

Gross weight

17KG

Height

49cm
