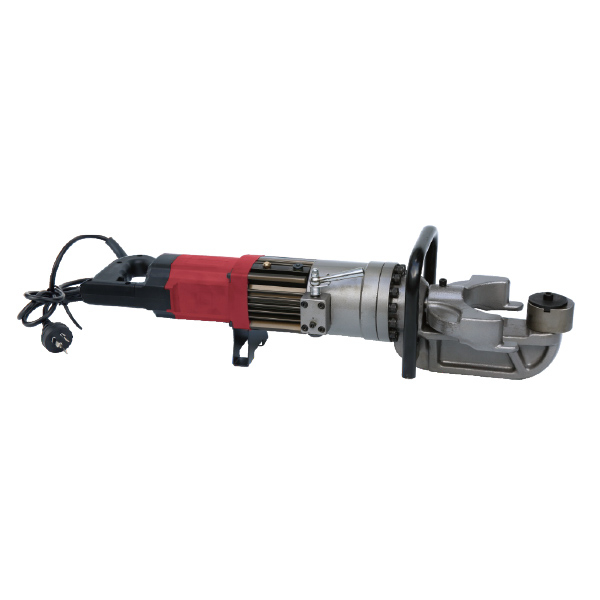

20-28mm portable bar bending machine

Brand: PROSHARP
Model: HRB-28
Power: 1250W
Rebar Diameter: 20mm/0.787inch - 28mm/1.103inch
Bending Speed: 4-5S
Availability:
Quantity:

Portable Rebar Bender -Brought to you by PROSHARP brand


HRB-28 Rebar Bender Brief:

· HRB-28 Portable Rebar Bender–Hydraulic Rebar Bender can bend 20-28mm steel bars from 0 to 100 degrees at the work site, which helps to save valuable hours!

· HRB-28 Portable Rebar Bender–Strong power, fast bending, can quickly bend steel bars with a diameter of 20-28mm in 5 seconds.

· HRB-28 Portable Rebar Bender-By adjusting the angle of the die head, the bending angle of small diameter steel bars can be achieved.

· HRB-28 Portable Rebar Bender-Packed in a plastic suitcase, with additional hydraulic oil pot and tool kit.


HRB-16A Rebar Bender Advantages:

· Motor: newly upgraded high-power 1250W carbon brush motor, strong power, low noise and long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: the original four-piston hole design, the bending efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Quick bending: within 5 seconds, quickly bend the steel bars with a diameter of 20-28mm

· Light weight: 22KG, easy to carry, maneuverable and easy to use


HRB-28 Rebar Bender Technical Parameters:

Brand

PROSHARP

Model

HRB-28

Type

Rebar Bender

Colour

Red, blue

Voltage

220V/110V, custom accept

Power

1250W

Bending speed

4-5 S

Maximum. Rebar

28mm/1.103 inch

Minimal. Rebar

20mm/0.787 inch

Rebar material type

Low carbon steel, round steel, thread steel

Handle length

Pull back 21CM


HRB-28 Rebar Bender Product Info:

Product Size

Length(mm)

720

Width(mm)

180

Height(mm)

195

Weight(kg)

22kg

Package Size

Length(mm)

800

Width(mm)

300

Height(mm)

215

Weight(kg)

32kg

Toolbox includes

Hydraulic oil can, tool kit, operation manual, inner PE, outer 7-layer corrugated paper


HRB-28 Product Overview      Click Here

20-28mm Portable Bar Bending Machine.pdf


Rebar Bender Manual       Click Here

Rebar Bender Catalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual      Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
