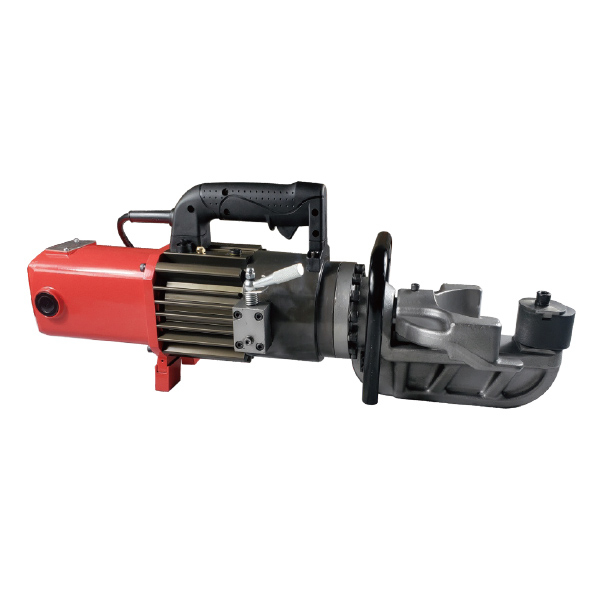

22-32mm bar bending hand tools

Brand: PROSHARP
Model: HRB-32
Power: 1600W
Rebar Diameter: 22mm/0.866inch - 32mm/1.26inch
Bending Speed: 5-6S
Availability:
Quantity:

Portable Rebar Bender - Brought to you by PROSHARP brand


HRB-32 Rebar Bender Brief:

· HRB-32 Portable Rebar Bender–Hydraulic Rebar Bender can bend 22-32mm diameter steel bars from 0 to 100 degrees at the work site, helping to save valuable hours!

· HRB-32 Portable Rebar Bender–Strong power, fast bending, can quickly bend 22-32mm steel bars in 6 seconds.

· HRB-32 Portable Rebar Bender-By adjusting the angle of the die head, the bending angle of small diameter steel bars can be achieved.

· HRB-32 Portable Rebar Bender-Packed in a plastic suitcase, with additional hydraulic oil pot and tool kit.


HRB-32 Rebar Bender Advantages:

· Motor: newly upgraded high-power 1600W carbon brush motor, strong power, low noise and long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: the original four-piston hole design, the bending efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Quick bending: within 6 seconds, quickly bend the 22-32mm diameter steel bar

· Light weight: 23KG, easy to carry, maneuverable and easy to use


HRB-32 Rebar Bender Technical Parameters:

Brand

PROSHARP

Model

HRB-32

Type

Rebar Bender

Colour

Red, blue

Voltage

220V/110V, custom accept

Power

1600W

Bending speed

5-6S

Maximum. Rebar

32 mm/1.26 inch

Minimal. Rebar

22 mm/0.866 inch

Rebar material type

Low carbon steel, round steel, thread steel

Handle length

Pull up 20CM


HRB-32 Rebar Bender Product Info:

Product Size

Length(mm)

640

Width(mm)

190

Height(mm)

230

Weight(kg)

23kg

Package Size

Length(mm)

800

Width(mm)

215

Height(mm)

300

Weight(kg)

33kg

Toolbox includes

Hydraulic oil can, tool kit, operation manual, inner PE, outer 7-layer corrugated paper


HRB-32 Product Overview      Click Here

22-32mm Bar Bending Hand Tools.pdf


Rebar Bender Manual       Click Here

Rebar Bender Catalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual      Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
