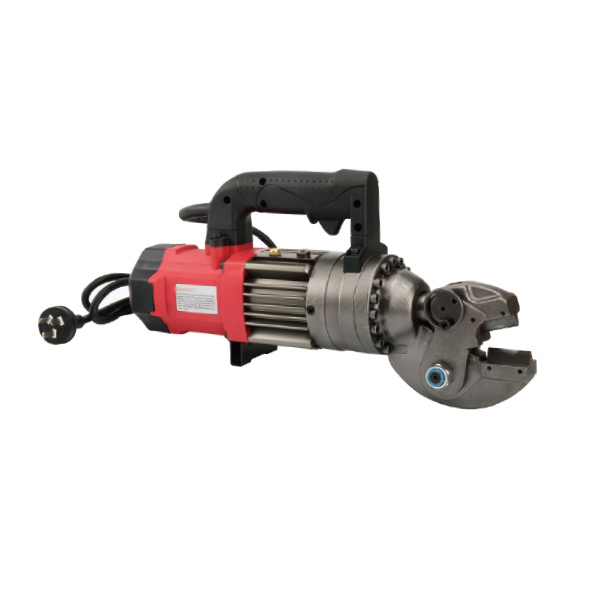

4-16mm scissor type handheld rebar cutter

Brand: PROSHARP
Model: SC-16B
Power: 1000W
Rebar Diameter: 4mm/0.157inch - 16mm/0.63inch
Cutting Speed: 1.5-2S
Availability:
Quantity:

Portable Rebar Cutter – Brought to you by PROSHARP brand


SC-16B Scissors Type Rebar Cutter Brief:

· SC-16B Scissors Type Rebar Cutter–Portable Rebar Cutter for construction sites. The product is light in weight, small in size and easy to carry. But this hydraulic rebar cutting machine can complete the work in 2 seconds!

· SC-16B Rebar Cutter is a kind of cold-cutting shear, no sparks, no dust, safe and reliable in the cutting process. It is generally suitable for cutting the 4-16mm reinforced ground cage scene, which solves the problem of the ordinary cutting machine head frame cannot be extended and on-site cutting. It is powered by an electric motor that drives a hydraulic pump, and equipped with a heavy-duty suitcase and tool bag.


SC-16B Scissors Type Rebar Cutter Advantages:

· Motor: Newly upgraded high-power 1000W carbon brush motor, strong power, low noise and long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: original four plunger hole design, cutting efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Quick cut: within 2 seconds, quickly cut steel bars with a diameter of 4-16mm

· Light weight: 10KG, easy to carry, maneuverable and easy to use


SC-16B Scissors Type Rebar Cutter Technical Parameters:

Brand

PROSHARP

Model

SC-16B

Type

Rebar Cutter

Color

Red, blue

Rebar cutting method

Open jaw scissors

Voltage

220V/110V

No-load power

1000W

Cutting speed

1.5-2 S

Maximum. Rebar

16 mm/0.63 inch

Minimal. Rebar

4 mm/0.157 inch

Rebar material type

Low carbon steel, round steel, thread steel

Handle length

Pull up 19CM

SC-16B Scissors Type Rebar Cutter Product Info:

Product Size

Length(mm)

440

Width(mm)

105

Height(mm)

310

Weight(kg)

10kg

Package Size

Length(mm)

480

Width(mm)

150

Height(mm)

310

Weight(kg)

12.5kg

Toolbox includes

hydraulic oil pot, tool kit, operation manual, inner PE, outer 7 layers of corrugated paper


SC-16B Product Overview      Click Here

4-16mm Scissor Type Handheld Rebar Cutter.pdf


Rebar Cutter Manual       Click Here

Rebar Cutter Catalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual        Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
