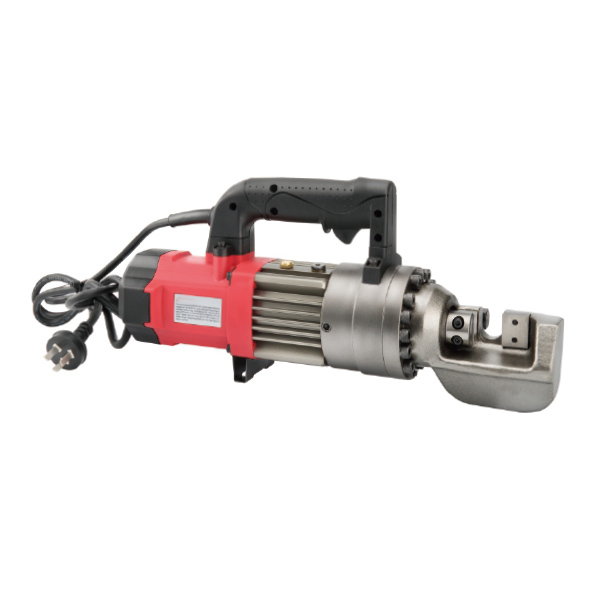

4-22mm portable rebar cutting machine

Brand: PROSHARP
Model: RC-22
Power: 1150W
Rebar Diameter: 4mm/0.157inch - 22mm/0.867inch
Cutting Speed: 2-2.5S
Availability:
Quantity:

Portable Rebar Cutter – Brought to you by PROSHARP brand


RC-22 Rebar Cutter Brief:

· RC-22 Rebar Cutter–Portable Rebar Cutter for construction sites. The product is light in weight, small in size and easy to carry. This hydraulic rebar cutter can complete the work in 2.5 seconds!

· RC-22 Rebar Cutter is a kind of cold cutting shear, no spark and no dust during cutting process, safe and reliable. Unlike saws with grinding blades and cutting torches, there are no sparks or flames. It is powered by an electric motor that drives hydraulic pump, and equipped with a heavy-duty suitcase and tool bag.



RC-22 Rebar Cutter Advantages:

· Motor: newly upgraded high-power 1150W carbon brush motor, strong power, low noise and long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: original four plunger hole design, cutting efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Fast cutting: within 2.5 seconds, quickly cut steel bars with a diameter of 4-22mm

· Light weight: 13.5KG, easy to carry, maneuverable and easy to use


RC-22 Rebar Cutter Technical Parameters:

Brand

PROSHARP

Model

RC-22

Type

Rebar Cutter

Color

Red, blue

Rebar cutting method

Cold extrusion

Voltage

220V/110V, custom accept

No-load power

1150W

Cutting speed

2-2.5 S

Maximum. Rebar

22 mm/0.867 inch

Minimal. Rebar

4 mm/0.157 inch

Rebar material type

Low carbon steel, round steel, thread steel

Handle length

Pull up 19CM


RC-22 Rebar Cutter Product Info:

Product Size

Length(mm)

450

Width(mm)

110

Height(mm)

220

Weight(kg)

13.5kg

Package Size

Length(mm)

500

Width(mm)

150

Height(mm)

310

Weight(kg)

16kg

Toolbox includes

hydraulic oil pot, tool kit, operation manual, inner PE, outer 7 layers of corrugated paper


RC-22 Product Overview      Click Here

4-22mm Portable Rebar Cutting Machine.pdf


Rebar Cutter Manual      Click Here

Rebar Cutter Catalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual      Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
