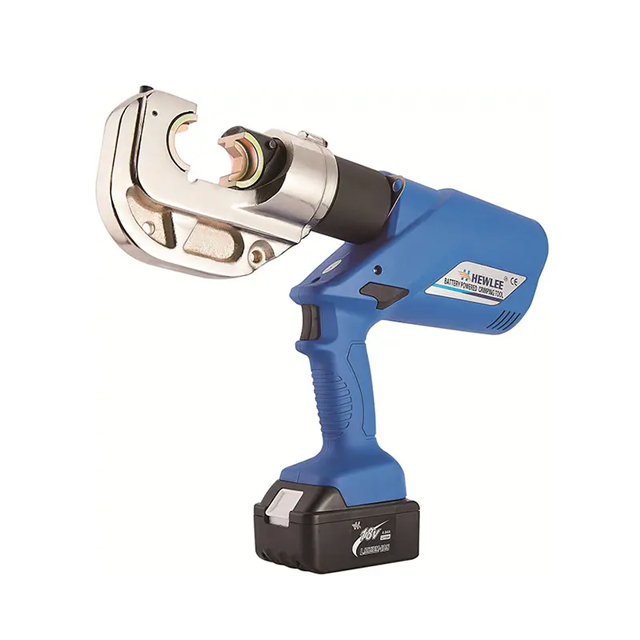

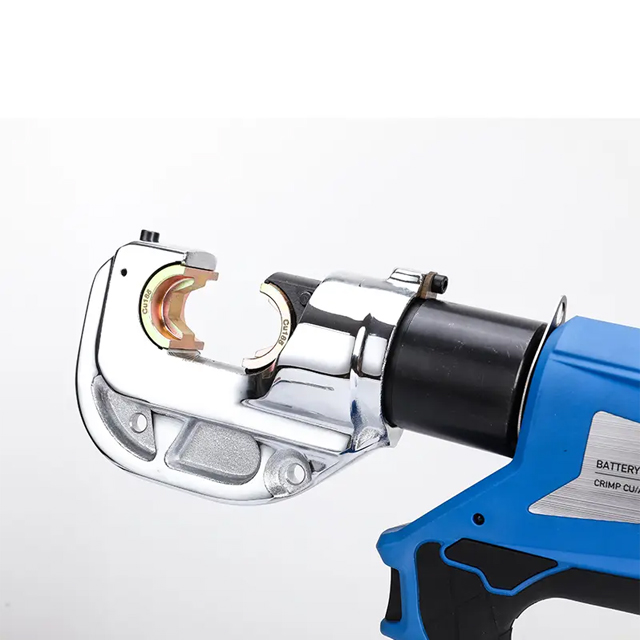

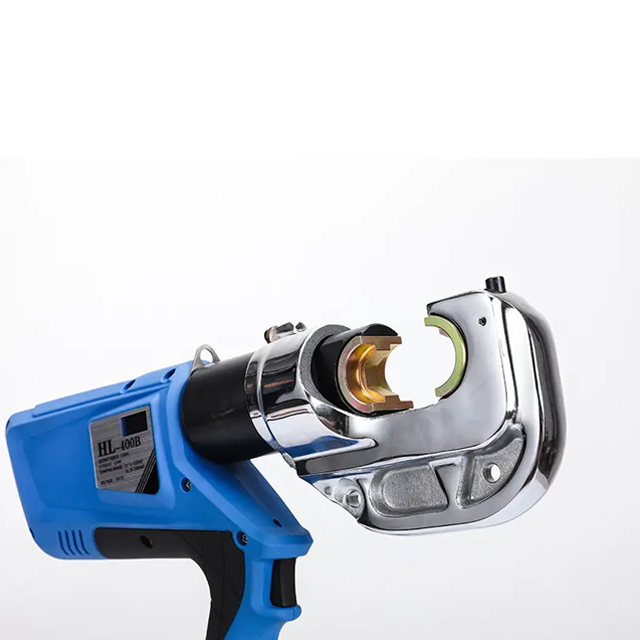

HL-400 Battery Powered Crimping Tools are ideal for both overhead and underground applications for utility linemen and service crews. It also is wide crimping, 360° free rotation of C-type clamp head, helping you operate more flexibly.
Features
1. 360° rotating clamp head, which is suitable for various operations
2. OLED real-time display of various information
3. One key control, the operation is simple and convenient, one complete the operation
4. One key reset, when there is an error in the crimping process, you can easily reset by pressing the trigger
5. Battery upgrade to 4.0AH. Two batteries can work in turn
Specification
Max. crimping force: | 120KN |
Crimping range: | 10-300 mm2 |
Stroke: | 17mm |
Hydraulic oil: | Shell Tellus T15# |
Ambient temperature: | -10 - 40℃ |
Battery: | 18v 4.0Ah Li-Ion |
Crimping cycle: | 42mm(depending on the size） |
Crimp/charger: | Approx. 260 crimps (Cu150 mm2) |
Charging voltage: | AC 100V〜240V; 50〜60Hz |
Charging time: | Approx. 1.5 hours |
OLED display： | display voltage, temperature, crimping times, errors information |
Accessories: | |
Crimping die (mm2): | 10.16.25.35.50.70.95.120.150.185.240.300 |
Weight(incl. battery): | Approx. 6.86kg |
Gross weight: | Approx.16kg |
Carton size: | 540x430x170mm |
Package: | One pc/Aluminum alloy case/Cardboard box |
Battery: | 2 pcs |
Charger: | 1 pcs |
Sealing ring of cylinder: | 1 set |
Sealing ring of safety valve: | 1 set |
Description of Components

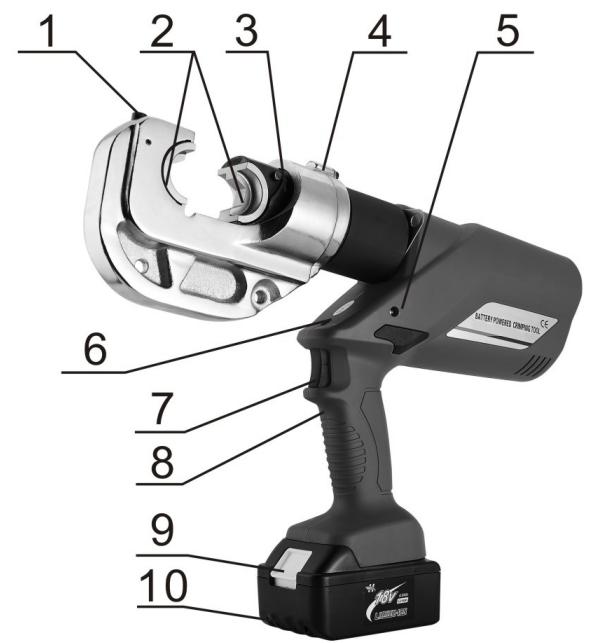

Parts No. | Description | Function |
1 | Pin | For locking/unlocking the upper die |
2 | Die | For crimping, interchangeable die |
3 | Retaining clips | For locking/unlocking the down die |
4 | Limited screw | For prevent head from dropping or popping |
5 | LED indicator | For indicating the operating condition and battery discharging situation |
6 | A white Led light | To illuminate the working area |
7 | Trigger | For starting operation |
8 | Retract button | For manual retracting the piston in case of an incorrect operation |
8 | Trigger | For starting operation |
9 | Battery lock | For locking/unlocking the battery |
10 | Battery | For supplying power, rechargeable Li-ion(18V) |
Function Description
1.
MCU - automatically detect the pressure during operation and provide security protect, shut off the motor and reset automatically after operation.
2.
Auto reset - release the pressure automatically, retract the piston to the starting position when reached the max output.
3.
Manual reset - can retract the position to the starting positioning in case of an incorrect crimp
4.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
5.
The crimping head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
6.
One significant sound will be heard and a red display flashes if any error occurs.
A white LED illuminates the working space after activating the trigger. It automatically switches off 10 sec. after releasing the trigger.
7.
The whole tool is controlled by one trigger. This results in any easy handing and a better grip compared to a two button operation.
8.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of non operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to Ni-MH batteries.
9.
A Temperature sensor makes the tool stop working automatically when the temperature over 60°C under long time working, the fault signal sounds, it means the tool can't continue work until the temperature reduced to the normal.
