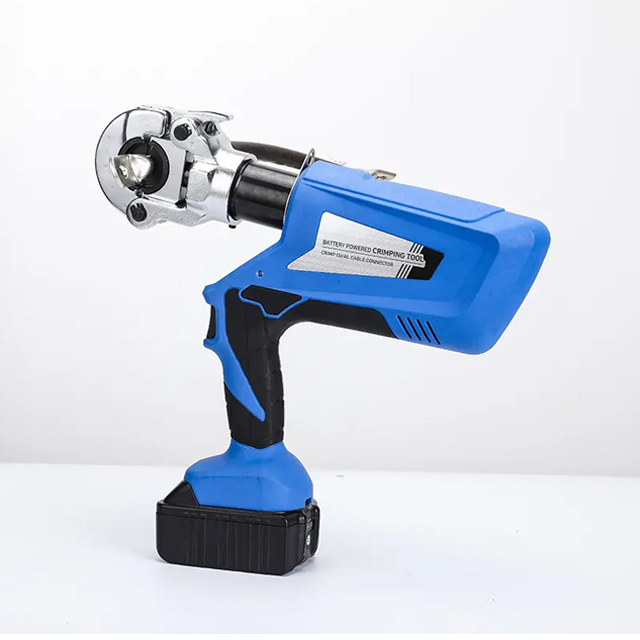

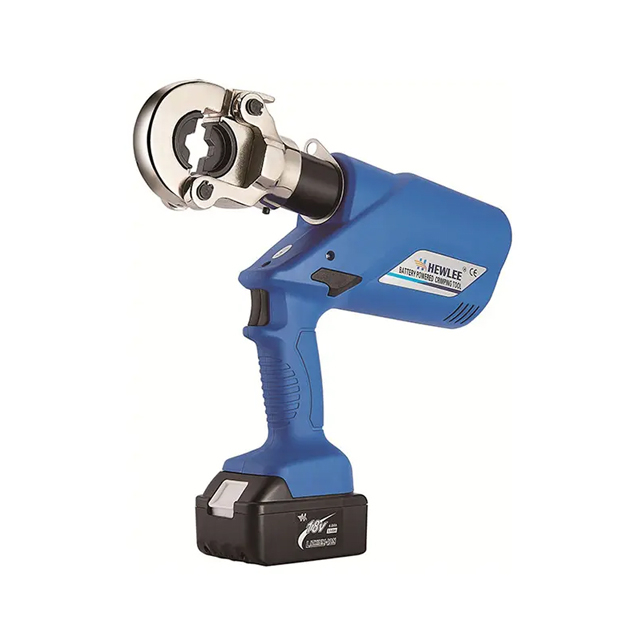

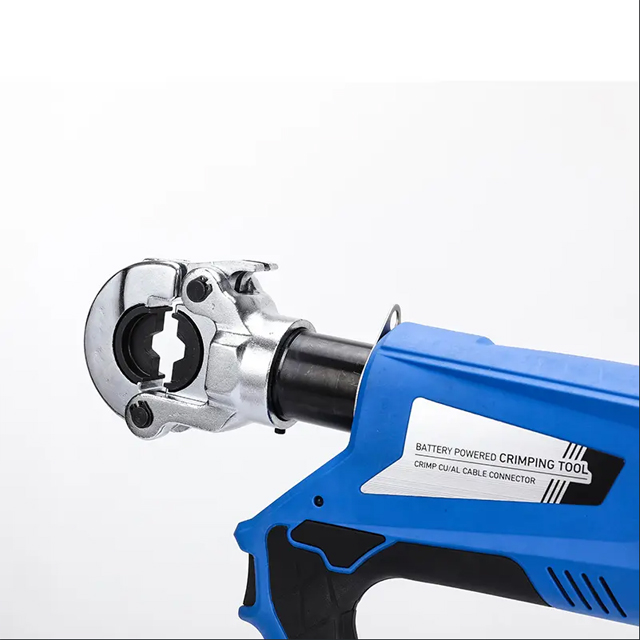

HL-300 BATTERY POWERED CRIMPING TOOL CRIMPER

Max. crimping force: 60KN
Crimping range: 10-300 mm2
Stroke: 17mm
Hydraulic oil: Shell Tellus T15#
Ambient temperature: -10 - 40℃
Battery: 18v 4.0Ah Li-Ion
Crimping cycle: 3s-6s(depending on the connector size)
Crimp/charger: Approx. 260 crimps (Cu150 mm2)
Charging voltage: AC 100V〜240V; 50〜60Hz
Charging time: Approx. 2 hours
OLED display: display voltage, temperature, crimping times, errors information

Availability:
Quantity:

HL-300 Battery Powered Crimping Tool used with round shaped crimp dies to crimp copper and aluminum connectors and wire for cable termination. It conforms to the ergonomic design, so that people can operate for a long time, greatly liberating human labor productivity, improve efficiency. In addition, we provide 12 pairs of crimping dies can be replaced, helping you expand choice space in critical situation.



HL-300 Battery Powered Crimping Tool used with round shaped crimp dies to crimp copper and aluminum connectors and wire for cable termination. It conforms to the ergonomic design, so that people can operate for a long time, greatly liberating human labor productivity, improve efficiency. In addition, we provide 12 pairs of crimping dies can be replaced, helping you expand choice space in critical situation.



Features

1. 3 seconds fast crimping conveniently



2. Crimping head rotates 360°



3. Two stage hydraulics, automatic pressure release, smart chip, easy to read and record the use of information



4. High-capacity 18V power-on display lithium battery with fast charger



5. Equipped with LED work lights to make work easier



6. External LCD screen, easy to read the number of crimping



7. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance



Specification

Max. crimping force:

60KN

Crimping range:

10-300 mm2

Stroke:

17mm

Hydraulic oil:

Shell Tellus T15#

Ambient temperature:

-10 - 40℃

Battery:

18v 4.0Ah Li-Ion

Crimping cycle:

3s-6s(depending on the   connector size)

Crimp/charger:

Approx. 260 crimps (Cu150 mm2)

Charging voltage:

AC 100V〜240V; 50〜60Hz

Charging time:

Approx. 2 hours

OLED display:

display voltage, temperature, crimping   times, errors information

Accessories:

Crimping die (mm2):

10.16.25.35.50.70.95.120.150.185.240.300

Battery:

2 pcs

Charger:

1 pcs

Sealing ring of   cylinder:

1 set

Sealing ring of   safety valve:

1 set
