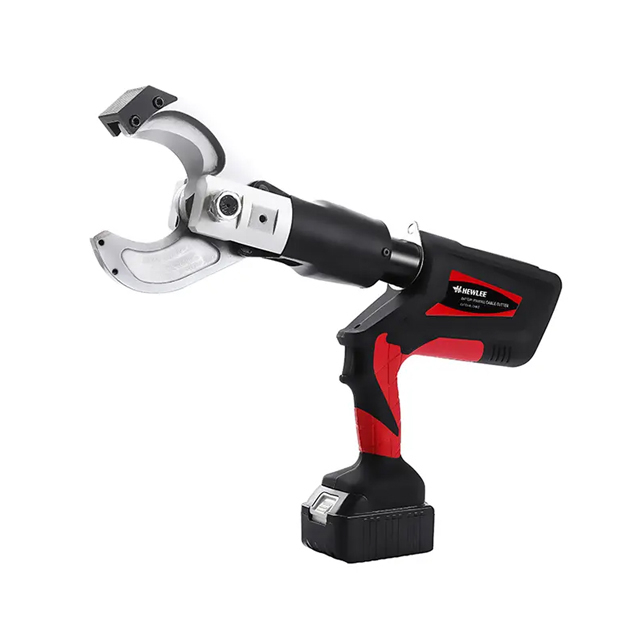

HL-85 OPENED TYPE HYDRAULIC BATTERY POWERED CABLE CUTTER

Cutting range: Φ85mm Cu/Al cable
Cutting force: 60KN
Stroke: 85mm
Cutting cycle: 8s-15s(depend on the size)
Battery voltage: 18v /4.0Ah Li-Ion
Charging time: Approx 1.5 hours
Weight(incl. battery): Approx. 8.8kg
Gross weight: Approx.15kg
Carton size: 540x430x170mm
Package: One pc/Aluminum alloy case/Cardboard box
Product standard: 1pcs of tool, 2pcs of Li-Ion battery, 1pcs of charger, 1pcs of plastic case, 1pcs of straps, 1pcs of manual

Availability:
Quantity:

HL-85 Opened Type Battery Powered Cutting Tools are not just used for cutting Cu/Al cable and armored cable. The weight of the machine body is only 8.8kg, and the operator can hold it with one hand for cutting. The tool itself has a good ergonomic design, which can ensure the stability of the tool even if it is operated by one hand, and can greatly reduce work fatigue under continuous work. The new addition ED Series give another option for a fast and reliable way to cut operation. HEWLEE get the tool to cut different kind of cables, include armoured Cu/Al cable, ACSR, Cu/Al Cable. The tool comes standard with two 18V, 4.0Ah Li-ion batteries and one charger, motor drives, Micro-computer control system, OLED display and two stage hydraulic system with fast feed and power control.



Features

1. Micro computer control systerm-automatically detectes the pressure when in crimping with double safety protect



2. The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping



3. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.



4. One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position



5. A temperature sensor makes the total stop working automatically whenthe temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until temperature reduced to the normal



6. Easy to operation, save time, cutting sharpness



7. Ergonimic design for comfortable grip



8. Big capacity lithinon battery, discharger, and can be accessed at any time



9. Thicknened plastic box packaging



Specification

Model

HL-85 Opened Battery Powered   Cutting Tools

Cutting range:

Φ85mm Cu/Al cable

Cutting force:

60KN

Stroke:

85mm

Cutting cycle:

8s-15s(depend on the   size)

Battery voltage:

18v /4.0Ah Li-Ion

Charging time:

Approx 1.5 hours

Weight(incl.   battery):

Approx. 8.8kg

Gross weight:

Approx.15kg

Carton size:

540x430x170mm

Package:

One pc/Aluminum alloy   case/Cardboard box

Product standard:   1pcs of tool, 2pcs of Li-Ion battery, 1pcs of charger, 1pcs of plastic case,   1pcs of straps, 1pcs of manual
