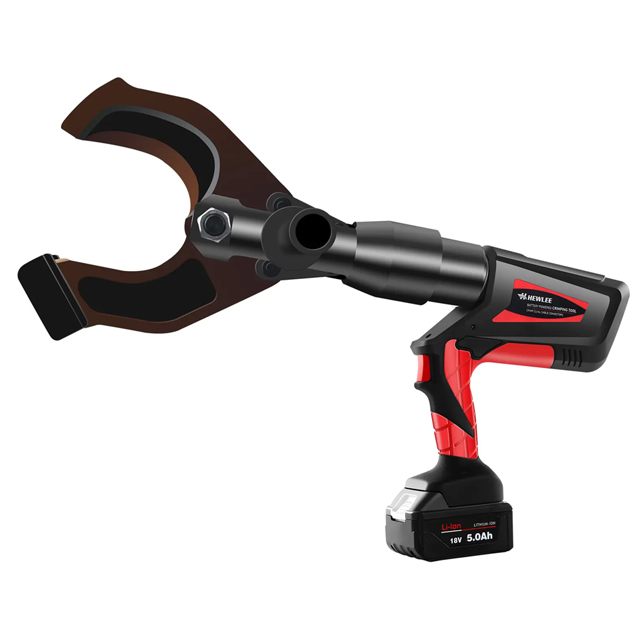

HL-105 Opened Type Battery Powered Cable Cutter apply for different angle working field. It has 360° rotary cutting head and ETC, which make you operate easier, safer and more efficient. Every cable cutter we will support accordingly accessories, such as blade, battery, charger, sealing ring of cylinder and sealing ring of safety valve.
Features
1. Powerful Motor ensure sufficient cutting force
2. High-performance battery with high capacity and require short charging time
3. Scissor type cutting blades can directly fit around cable, do not need to open tool head to insert cable
4. Pistol type tool body for better balance and easy handling
5. Blades can be opened at any time during cutting for necessary check or adjustment of press manual retract button
6. Automatically retract blade and stop motor when rated pressure is reached
7. Rotatable head for flexible operation in narrow place
8. LED illumination for easy cutting in dark place
9. LED indicator show tool and battery condition
10. Plastic Case Package for easy carrying and well tool protection
Specification
Mode: | HL-105 Opened Type Battery Powered Cable Cutter |
Max. cutting force: | 120KN |
Crimping range: | Φ85mm (Cu/Al cable and armored cable) |
Stroke: | 42mm |
Hydraulic oil: | Shell Tellus T15# |
Ambient temperature: | -10 - 40℃ |
Battery: | 18v 4.0Ah Li-Ion |
Cutting/charger: | Approx. 70 times (Cu150 mm2) |
Charging voltage: | AC 100V〜240V; 50〜60Hz |
Charging time: | Approx. 2 hours |
Accessories: | |
Blade: | 1 pcs |
Battery: | 2 pcs |
Charger: | 1 pcs |
Sealing ring of cylinder: | 1 set |
Sealing ring of safety valve: | 1 set |
Description of Components
Description | Function |
Blade holder | For fixing blade |
Blade | For cutting blade |
Handle | |
A white Led light | To illuminate the working area |
Retract button | For manual retracting the piston in case of an incorrect operation |
LED indicator | For indicating the operating condition and battery discharging situation |
Trigger | For starting operation |
Battery lock | For locking/unlocking the battery |
Battery | For supplying power, rechargeable Li-ion(18V) |
