Features
1. High strength of forging, heat treatment
2. The head can be rotate 360° to adapt to different working situations
3. Good design cooling system can effectively prevent motor overheating
4. One button operation is easy to use, automatic pressure relief
5. Battery upgrade to 4. 0AH, two batteries can work in turn
6. Special suitcase is clean and tidy inside, it is easy to carry
7. The dies are made of high strength alloy steel, after heat treatment, it is durable and beautiful
8. Easy to carry by hand and tidy inside
Specification

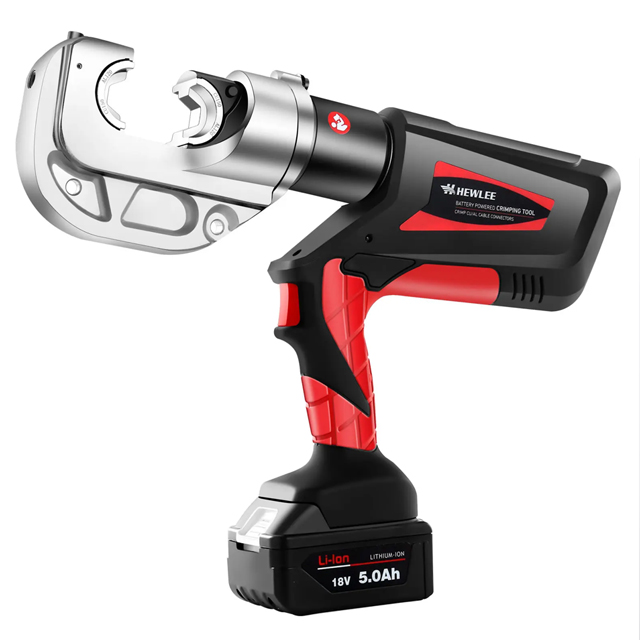

Model: | HL-400B Battery Powered Crimping Tool |
Max. crimping force: | 120KN |
Crimping range: | 16-400 mm2 |
Stroke: | 42mm |
Battery: | 18v 4.0Ah Li-Ion |
Charging voltage: | AC 110V〜240V |
Charging time: | Approx. 2 hours |
OLED display： | display voltage, temperature, crimping times, errors information |
Accessories: | |
Crimping die (mm2): | 16.25.35.50.70.95.120.150.185.240.300.400 |

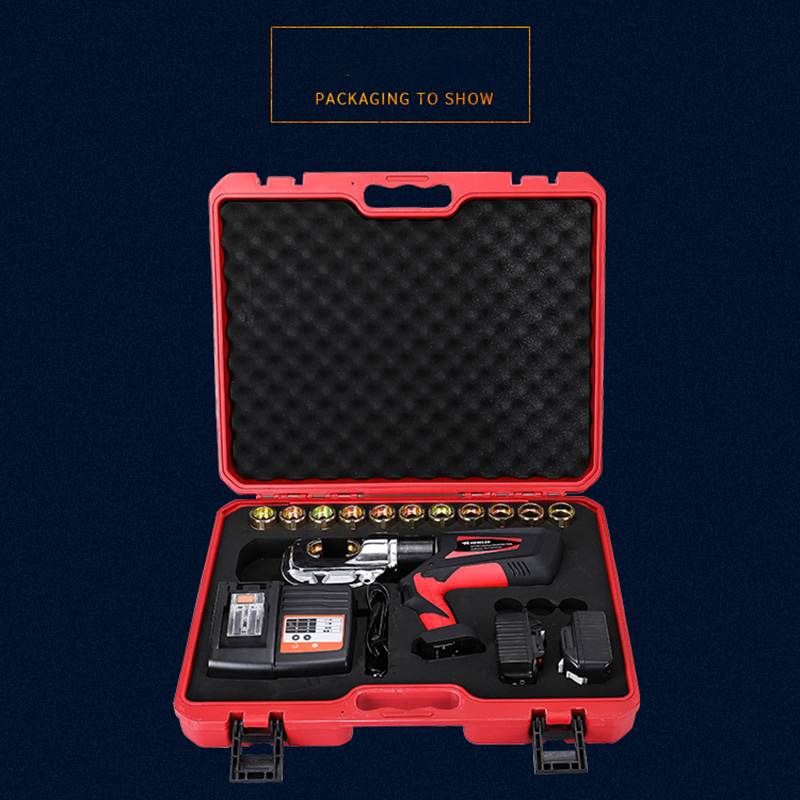

Package: | One pc/Aluminum alloy case/Cardboard box |
Crimping dies: | 12 sets |
Battery: | 2 pcs |
Charger: | 1 pcs |
Shoulder strap: | 1 pc |
Plastic case: | 1 pc |

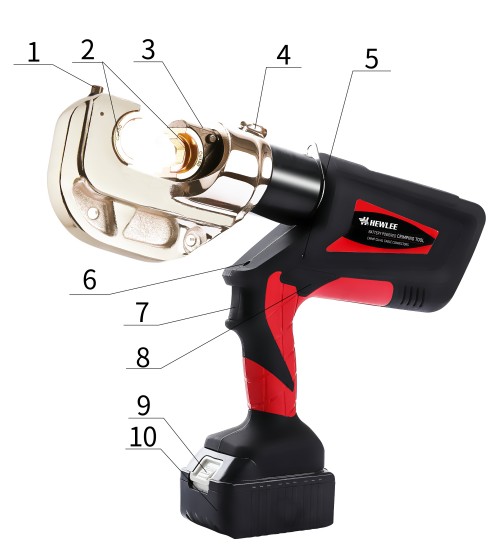

Description of Components
Parts No. | Description | Function |
1 | Pin | For locking/unlocking the upper die |
2 | Die | For crimping, interchangeable die |
3 | Retaining clips | For locking/unlocking the down die |
4 | Limited screw | For prevent head from dropping or popping |
5 | LED indicator | For indicating the operating condition and battery discharging situation |
6 | A white Led light | To illuminate the working area |
7 | Trigger | For starting operation |
8 | Retract button | For manual retracting the piston in case of an incorrect operation |
8 | Trigger | For starting operation |
9 | Battery lock | For locking/unlocking the battery |
10 | Battery | For supplying power, rechargeable Li-ion(18V) |
Packing
