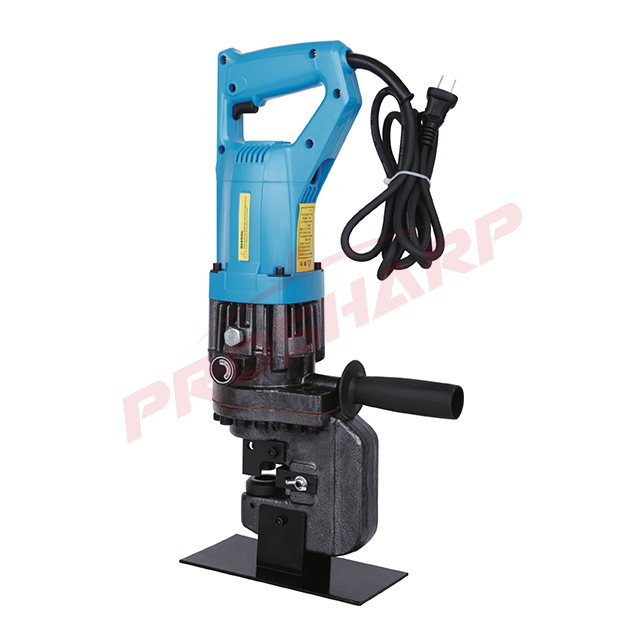

JP-20 Electric punching machine long version

Motor power: 1200W
Punching die: Round die
Max. piercing dia.: 20.5mm
Min. piercing dia.: 6.5mm
Max. sheet thickness: 6mm
Voltage: 110V/220V/230V
Punching speed: 2-3S
Net weight: 12KG
Gross weight: 17KG
Height: 49cm
Availability:
Quantity:

Electro hydraulic punching tool description: Suitable for iron, copper, aluminum, forming steel, channel steel, I-beam drilling operations, small size, light weight, easy to operate, labor-saving and rapid punching other advantages. This model is electro-hydraulic punching tool; Suitable for punching iron, copper, aluminum and other metal materials; Punching speed, positioning accuracy is not offset; Can make punching die of various shapes; Hydraulic punching can exempted chips produced during drilling are safer and cleaner during operation. They can be carried to the site or fixed in the factory for large-volume punching operations.


Model

JP20 Electric punching machine (long   version)

Motor power

1200W

Punching die

Round die

Max. piercing dia.

20.5mm

Min. piercing dia.

6.5mm

Max. sheet thickness

6mm

Voltage

110V/220V/230V

Punching capacity

It is prohibited to punch the maximum   aperture and thickness shown in the table above (Angle iron and 6mm iron   plate)

Punching speed

2-3S

Net weight

12KG

Gross weight

17KG

Height

49cm
