6-20mm portable hydraulic cordless punching machine

Brand: PROSHARP
Model: BPM-20
Power: 450W
Punching Speed: 2-3S
Punching Range: 6-20mm
Punching Thickness: 0-6mm
Battery Capacity: 5000mA
Battery Charging Time: 90min
Battery Charger Input: AC110-240V 50-60Hz
Availability:
Quantity:

Electric Hydraulic Punching MachineBrought to to you by  PROSHARP brand


BPM-20 Lithium Battery Electric Hydraulic Punching Machine Brief:

· BPM-20 Lithium Battery Electric Hydraulic Punching Machine–Used for drilling steel, iron, copper, aluminum, I-beam, and formed steel. This product is small in size, light in weight, fast in punching speed, and easy to carry!

· It can be easily lifted by one person, saving time and effort. The weight of this handheld electric Hydraulic Punching Machine is 30% lighter, and the punching range is 6-20mm. It can be used for high-altitude operations and multi-angle punching.

· BPM-20 Hydraulic Punching Machine is packed in a plastic suitcase, equipped with hydraulic oil pot, battery (2), battery charger, side handle, and operating manual.


BPM-20 Electric Hydraulic Punching Machine Advantages:

· Motor: 450W brushless motor, strong power, low energy consumption, low noise, long life

· Head frame material: high-strength special iron alloy forging material, high toughness, not easy to deform, smooth and flat surface

· Pump body material: using 600# spherical molybdenum round steel fine processing, high temperature resistance, friction resistance, high pressure resistance

· Cylinder material: high-performance aluminum cylinder, fast heat dissipation, smooth oil return, light weight and good appearance

· Knife shaft sealing ring: Japan imported NOK brand, friction resistance, strong sealing, and long service life

· Pump body design process: original four plunger hole design, efficiency is significantly improved by 30% compared with ordinary market machines

· Cylinder design process: The unique piston cylinder design increases the oil storage capacity and avoids the problem of rubber ring oil sacs

· Punching speed: within 2-3 seconds, punching 6-20mm, punching thickness 0-6mm

· Light weight: 14KG, no power cord, easy to carry, maneuverable and easy to use


BPM-20 Hydraulic Punching Machine Technical Parameters:

Brand

PROSHARP

Model

BPM-20

Type

Hydraulic Punching Machine

Colour

Silver gray

Voltage

18V 5Ah

Power

450W

Punching speed

2-3S

Punching range

6-20mm

Punching thickness

0-6mm

Material type

Steel plate, iron plate, copper plate, aluminum plate, etc.

Battery capacity

5000mA

Battery charging time

90min

Battery charger input

AC110-240V 50-60Hz


BPM-20 Hydraulic Punching Machine Product Info:

Product Size

Length(mm)

280

Width(mm)

450

Height(mm)

130

Weight(kg)

14kg

Package Size

Length(mm)

500

Width(mm)

155

Height(mm)

430

Weight(kg)

21kg

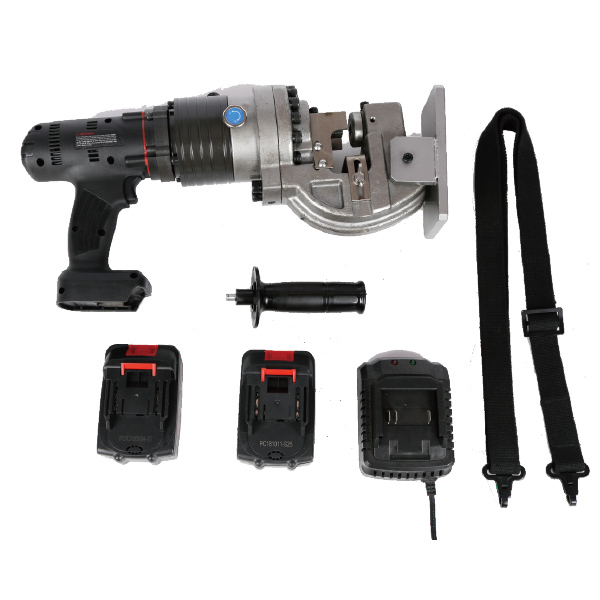

Toolbox includes

Hydraulic oil can, tool kit, operating manual, battery (2), battery charger and side handle



BPM-20 Product Overview      Click Here

6-20mm Portable Hydraulic Cordless Punching Machine.pdf


Hydraulic Punching Machine Manual       Click Here

Hydraulic Punching MachineCatalog - PROSHARP TOOL.pdf


Portable Hydraulic Hand Tools Manual      Click Here

Product Catalog Full Series - PROSHARP TOOL.pdf
