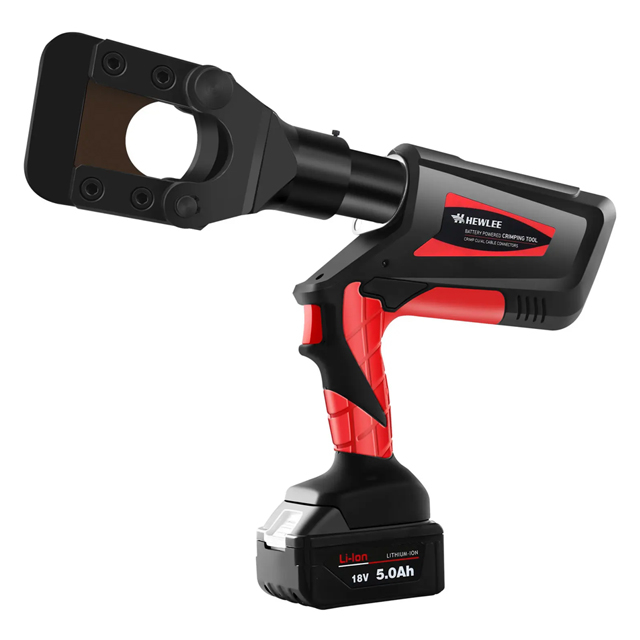

HL-45B BATTERY POWERED CABLE WIRE CUTTER

Cutting range: Φ45mm Cu/Al cable
Cutting force: 60KN
Stroke: 50mm
Cutting cycle: 3s-6s(depend on the size)
Battery voltage: 18V /5.0Ah Li-Ion
Charging time: Approx 1.5 hours
Weight(incl. battery): Approx. 5.9kg
Gross weight: Approx.12kg
Carton size: 540x430x170mm
Package: One pc/Aluminum alloy case/Cardboard box
Product standard: 1pcs of tool, 2pcs of Li-Ion battery, 1pcs of charger, 1pcs of plastic case, 1pcs of straps, 1pcs of manual

Availability:
Quantity:

HL-45B for cutting Cu/Al cable and armored cable. It carries more advantages of high efficiency, easy operate, automatic retract, 360° rotary cutting head, ETC. It is powered by Li-ion, actuated by motor and controlled by M C U. With a high pressure hydraulic system, it is a perfect tool to be used in electrical construction site.


Features

1. LED light suitable for dark environment, the LED lamp opens automatically,1. 5W power, energy saving and durable, soft light, easy to operate



2. 18V lithium 4. 0Ah battery, light weight, enough power, long endurance time



3. Configure the 18V speed charger, charge only 90 minutes

4. Fully enclosed high speed hydraulic pump, brushless motor to deliver ultimate reliability in the toughest conditions.



5. Electron hydraulic device to reduce cutting cycle.



6. The head can be smoothly turned by 360° around the longitudinal axis in order to gain better access to tight comers and other difficult working areas.



Specification

Model

HL-45 Battery Powered   Cutting Tools


Cutting range:

Φ45mm Cu/Al cable


Cutting force:

60KN


Stroke:

50mm


Cutting cycle:

3s-6s(depend on the   size)


Battery voltage:

18V /5.0Ah Li-Ion


Charging time:

Approx 1.5 hours


Weight(incl. battery):

Approx. 5.9kg


Gross weight:

Approx.12kg


Carton size:

540x430x170mm


Package:

One pc/Aluminum alloy   case/Cardboard box


Product standard:   1pcs of tool, 2pcs of Li-Ion battery, 1pcs of charger, 1pcs of plastic case,   1pcs of straps, 1pcs of manual

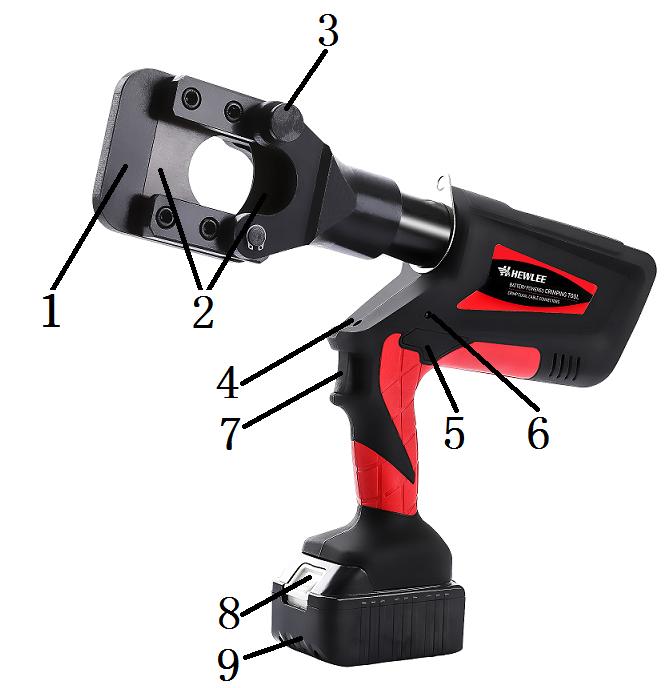

Description of Components

HL-45B-Battery-Powered-Cable-Cutter-Description-7


Parts No.

Description

Function

1

Blade holder

For fixing blade

2

Blade

For cutting blade

3

Pin

For locking the   cutting head

4

A white Led light

To illuminate the   working area

5

Retract button

For manual retracting   the piston in case of an incorrect operation

6

LED indicator

For indicating the   operating condition and battery discharging situation

7

Trigger

For starting   operation

8

Battery lock

For locking/unlocking   the battery

9

Battery

For supplying power,   rechargeable Li-ion(18V)
