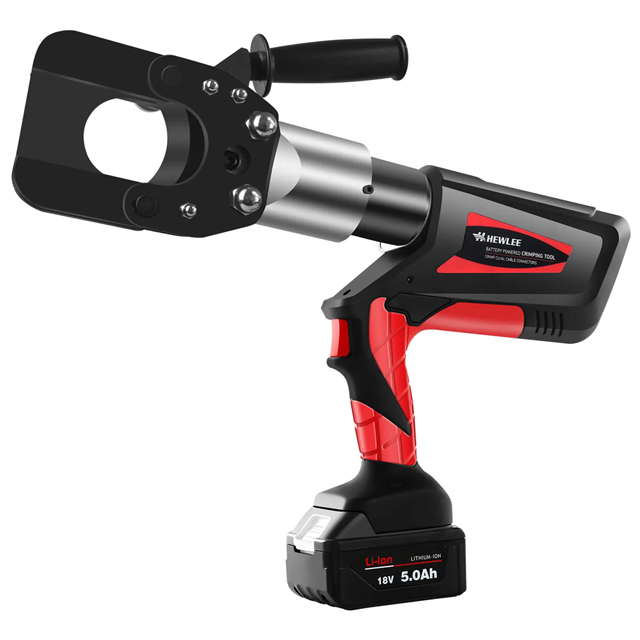

HL-55B Battery Powered Cable Cutter not only cut Cu/Al cable,but also can cut steel strand. It carries more advantages of high efficiency, easy operate, automatic retract, 360° rotary cutting head, ETC. It is powered by Li-ion, actuated by motor and controlled by M C U. With a high pressure hydraulic system, it is a perfect tool to be used in electrical construction site.
Specification
Model | HL-55B Battery Powered Cable Cutter |
Cutting range: | Φ55mm Cu/Al cable |
Cutting force: | 120KN |
Stroke: | 50mm |
Battery voltage: | 18V 5.0Ah Li-Ion |
Charging time: | Approx 1.5 hours |
Host weight: | 6.72kg |
Voltage: | 110V-240V AC |
Package: | Plastic Case |

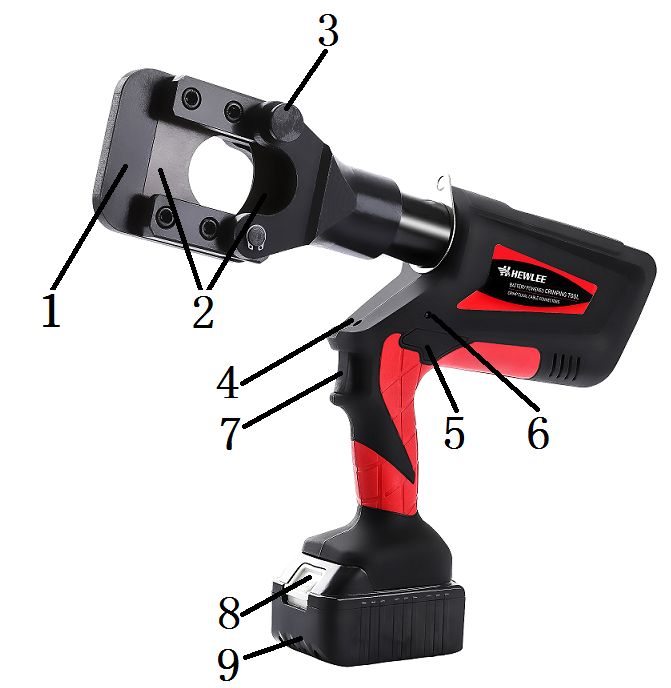

Description of components
Parts No. | Description | Function |
1 | Blade holder | For fixing blade |
2 | Blade | For cutting blade |
3 | Pin | For locking the cutting head |
4 | A white Led light | To illuminate the working area |
5 | Retract button | For manual retracting the piston in case of an incorrect operation |
6 | LED indicator | For indicating the operating condition and battery discharging situation |
7 | Trigger | For starting operation |
8 | Battery lock | For locking/unlocking the battery |
9 | Battery | For supplying power, rechargeable Li-ion(18V) |
