battery cable crimping tool

Technical Data:
Crimping force: 60-120KN
Crimping range: 10-400mm2
Strole: 17-42mm
Crimp/charger: 320times (Cu 150mm2)
Crimping cycle: 3-6s (depend on the size of cable)
Battery voltage: 18V
Battery capacity: 4.0Ah
Charging time: 2h

Accessories:
Crimping dies: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2
Battery: 2 pcs
Charger: 1 pc
Sealing element: 1 set

Availability:
Quantity:

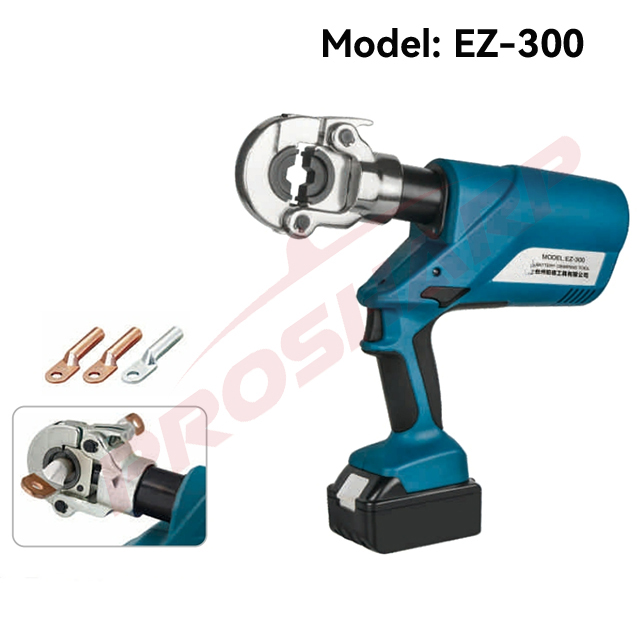

EZ-300 cable crimping tool

Model: EZ-300

Technical Data:

Crimping force: 60KN

Crimping range: 16-300mm2

Strole: 17mm

Crimp/charger: 320times (Cu 150mm2)

Crimping cycle: 3-6s (depend on the size of cable)

Battery voltage: 18V

Battery capacity: 4.0Ah

Charging time: 2h

Accessories:

Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2

Battery: 2 pcs

Charger: 1 pc

Sealing element: 1 set

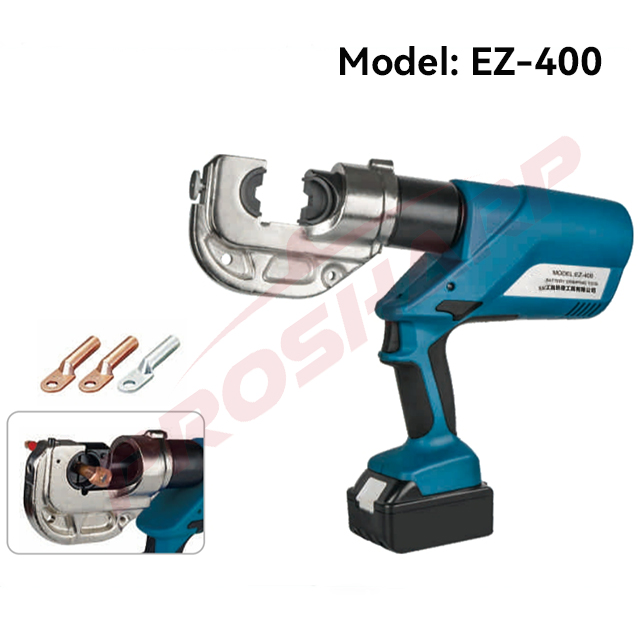

EZ-400 Model: EZ-400

Technical Data:

Crimping force: 120KN

Crimping range: 16-400mm2

Strole: 42mm

Crimp/charger: 120times (Cu 150mm2)

Crimping cycle: 6-18s (depend on the size of cable)

Battery voltage: 18V

Battery capacity: 4.0Ah

Charging time: 2h

Accessories:

Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2

Battery: 2 pcs

Charger: 1 pc

Sealing element: 1 set

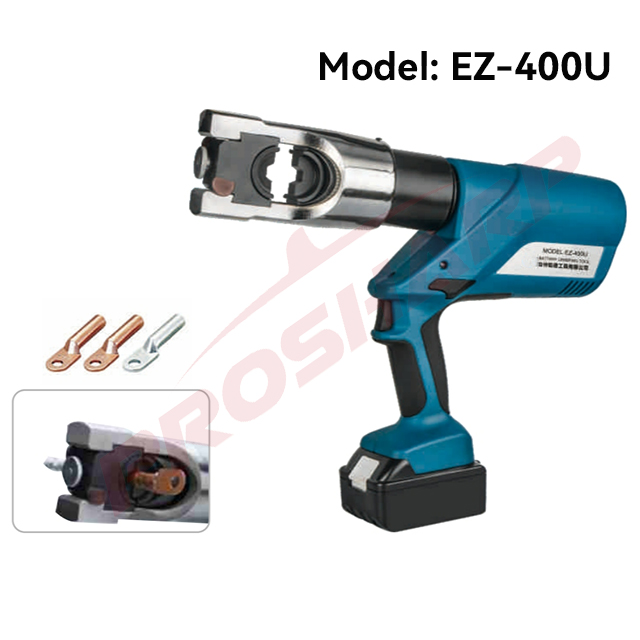

EZ-400U cable crimping tool Model: EZ-400U

Technical Data:

Crimping force: 120KN

Crimping range: 16-400mm2

Strole: 22mm

Crimp/charger: 150times (Cu 150mm2)

Crimping cycle: 4-12s (depend on the size of cable)

Battery voltage: 18V

Battery capacity: 4.0Ah

Charging time: 2h

Accessories:

Crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2

Battery: 2 pcs

Charger: 1 pc

Sealing element: 1 set

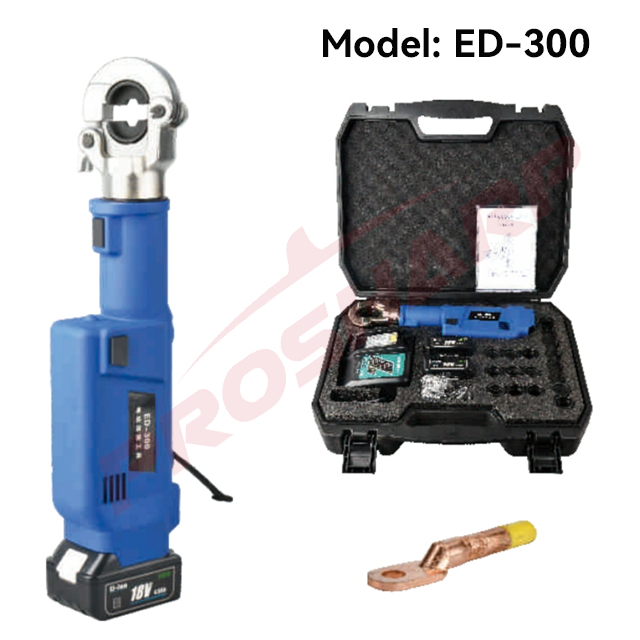

ED-300

Model: ED-300

Technical Data:

Crimping force: 60KN

Crimping range: 10-300mm2

Strole: 17mm

Crimp/charger: 320times (Cu 150mm2)

Crimping cycle: 3-6s (depend on the size of cable)

Battery voltage: 18V

Battery capacity: 4.0Ah

Charging time: 2h

Accessories:

Crimping dies: 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2

Battery: 2 pcs

Charger: 1 pc

Sealing element: 1 set
