| Quantity: | |
|---|---|

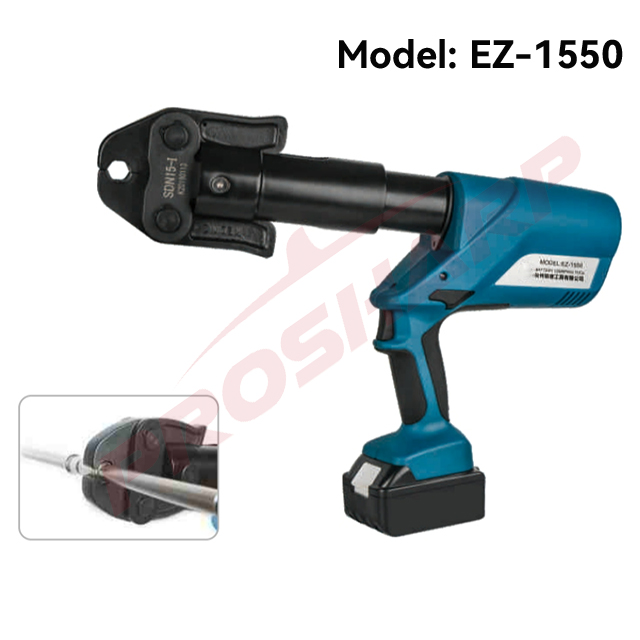

 | Model: EZ-1550 Technical Data: Crimping force: 32KN Crimping range: DN15-DN50 stainless steel pipe Stroke: 35mm Crimp/charger: 350 times (DN20 stainless steel pipe) Crimping cycle: 5-8s (depend on the size of cable) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |

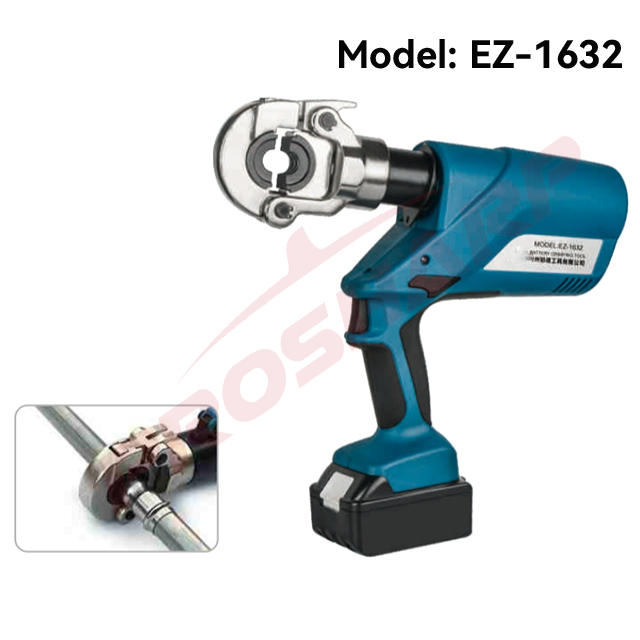

 | Model: EZ-1632 Technical Data: Crimping force: 60KN Crimping range: stainless pipe, stainless steel pipe, multilayer composite pipe, PEX pipe Stroke: 17mm Crimp/charger: 320 times (DN20 stainless steel pipe) Crimping cycle: 5-6s (depend on the diameter of tube) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |

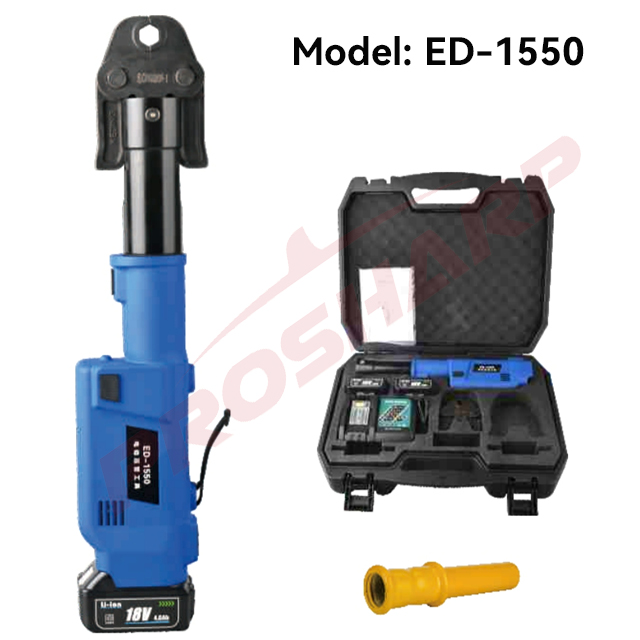

 | Model: ED-1550 Technical Data: Crimping force: 32KN Crimping range: DN15-DN50 stainless steel pipe Stroke: 35mm Crimp/charger: 350 times (DN20 stainless steel pipe) Crimping cycle: 5-8s (depend on the size of cable) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |
Diameter parameter table of DN15, DN20, DN25, DN32, DN40, DN50 mould
Pipe diameter nominal | I series pipe | II series pipe | Pipe wall thickness |
DN15 | 16mm | 16mm | 0.8mm |
DN20 | 20mm | 22.2mm | 1mm |
DN25 | 25.4mm | 28.6mm | 1mm |
DN32 | 32mm | 34mm | 1.2mm |
DN40 | 40mm | 42.7mm | 1.2mm |
DN50 | 50.8mm | 48.6mm | 1.2mm |
The moulds below are for reliable crimping of China standard GB/T 19228 stainless steel pipe fitting.
| Model: EZ-1550 Technical Data: Crimping force: 32KN Crimping range: DN15-DN50 stainless steel pipe Stroke: 35mm Crimp/charger: 350 times (DN20 stainless steel pipe) Crimping cycle: 5-8s (depend on the size of cable) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |
| Model: EZ-1632 Technical Data: Crimping force: 60KN Crimping range: stainless pipe, stainless steel pipe, multilayer composite pipe, PEX pipe Stroke: 17mm Crimp/charger: 320 times (DN20 stainless steel pipe) Crimping cycle: 5-6s (depend on the diameter of tube) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |
| Model: ED-1550 Technical Data: Crimping force: 32KN Crimping range: DN15-DN50 stainless steel pipe Stroke: 35mm Crimp/charger: 350 times (DN20 stainless steel pipe) Crimping cycle: 5-8s (depend on the size of cable) Battery voltage: 18V Batter capacity: 4.0Ah Charging time: 2h Package: plastic box Accessories: Battery: 2 pcs Charger: 1 pc Sealing element: 1 set |
Diameter parameter table of DN15, DN20, DN25, DN32, DN40, DN50 mould
Pipe diameter nominal | I series pipe | II series pipe | Pipe wall thickness |
DN15 | 16mm | 16mm | 0.8mm |
DN20 | 20mm | 22.2mm | 1mm |
DN25 | 25.4mm | 28.6mm | 1mm |
DN32 | 32mm | 34mm | 1.2mm |
DN40 | 40mm | 42.7mm | 1.2mm |
DN50 | 50.8mm | 48.6mm | 1.2mm |
The moulds below are for reliable crimping of China standard GB/T 19228 stainless steel pipe fitting.
