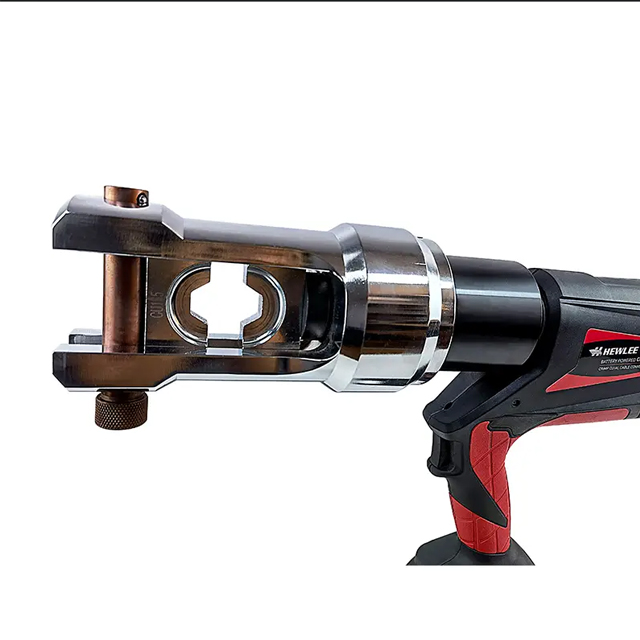

HL-630B is a tool for crimping Cu/Al lugs with cables from 25-630 mm².It is powered by Li-ion, actuated by motor and controlled by M C U. With a high pressure hydraulic system, it is a perfect tool to be used in electrical construction site. The output force of HL-630B is around 200KN and the stroke is 62mm,which improve using efficiency of lineman and workman in a certain.
Features
1.High strength of forging,heat treatment
2.The head can be rotate 360° to adapt to different working situations
3.Good design cooling system can effectively prevent motor overheating
4.One button operation is easy to use,automatic pressure relief
5.Battery upgrade to 5.0 AH,two batteries can work in turn
6.Special suitcase is clean and tidy inside,it is easy to carry
7.The dies are made of high strength alloy steel,after heat treatment,it is durable and beautiful
8.Easy to carry by hand and tidy inside
Specification
Model | HL-630B Battery Crimping Tool |
Max. crimping force: | 200KN |
Crimping range: | Cu 25-630 mm2 |
Stroke: | 62mm |
Battery: | 18v DC 5.0Ah Li-Ion |
Charging voltage: | AC 110V〜240V |
Charging time: | Approx. 2 hours |
Weight: | 8.3kgs |

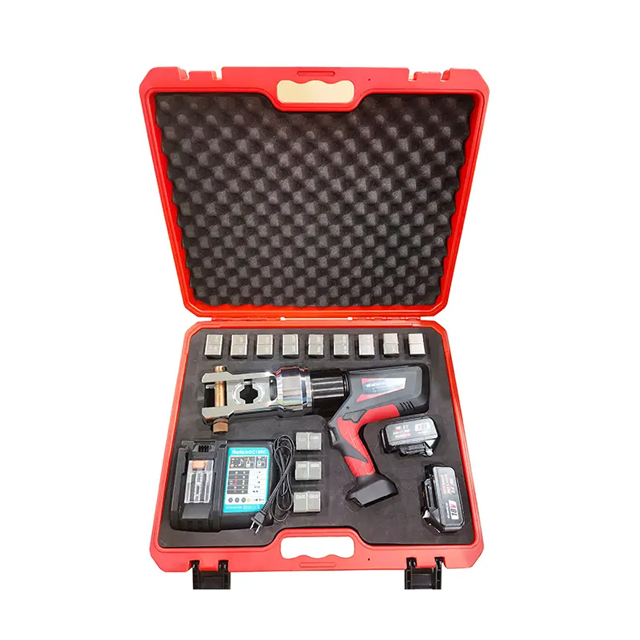

Accessories: | |
Crimping die (mm2): | 25,35,50,70,95,120,150,185,240,300,400,500,630mm² |
Package: | One pc/Aluminum alloy case/Cardboard box |
Crimping dies: | 12 sets |
Battery: | 2 pcs |
Charger: | 1 pcs |
Shoulder strap: | 1 pc |
Plastic case: | 1 pc |
