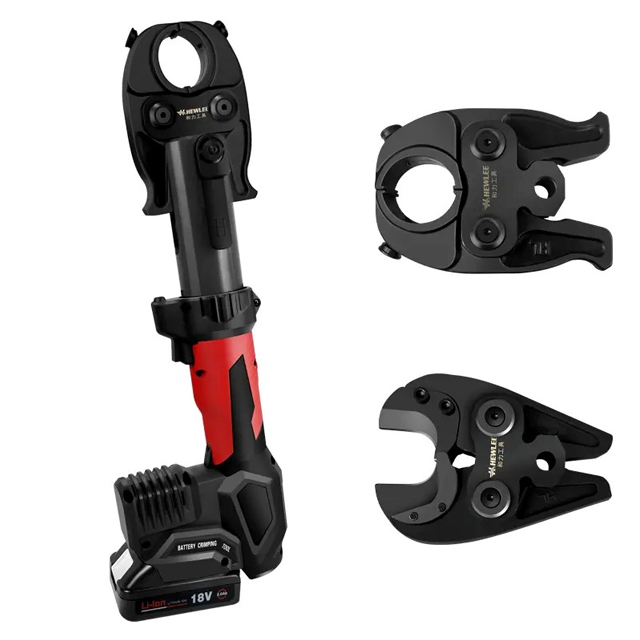

HZT-300C Battery Powered Crimping Tool with Cutting is the composite tool in the Prosharp Compact Press Tool family. The HZT-300C not only allow you crimping but also ensure you cutting. This weight just 2.58KGS, which not include head and battery. The tool itself is ergonomically designed to ensure stability even with one hand and to greatly reduce fatigue during continuous operation. The crimping range divided from 10 to 300mm2 to satisfy your different requirements.
Model: HZT-300C Battery Powered Crimping And Cutting Tool
Max. crimping force: 42KN
Stroke: 25mm
Crimping range: 10-300 mm2
Cutting range: MaxΦ30mm (Cu/Al cable, ACSR, wire rope)
Battery: 18v 4.0Ah Li-Ion
Charging voltage: AC 110V〜240V
Charging time: Approx. 0.5 hours
Weight: 2.58kgs(not include head and battery)
OLED display: display voltage, temperature, crimping times, errors information
Accessories:

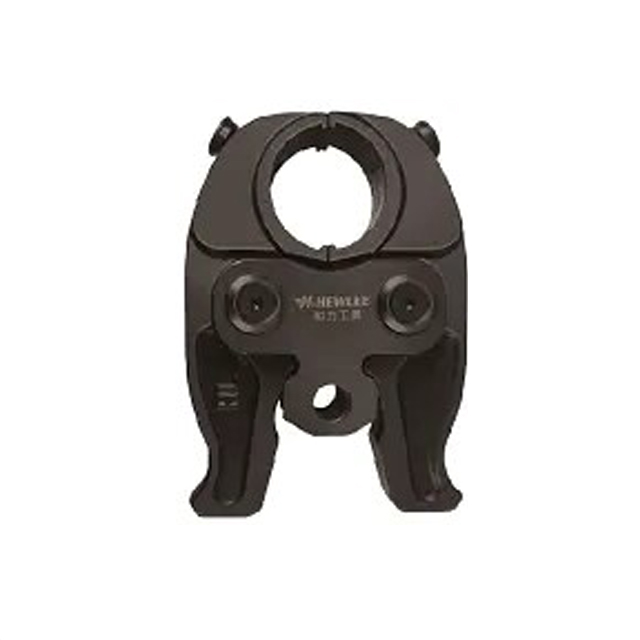

Crimping die (mm2): 10.16.25.35.50.70.95.120.150.185.240.300
Crimping dies: 12 sets
Battery: 2 pcs
Charger: 1 pcs
Shoulder strap: 1 pc
Plastic case: 1 pc
Specification
Model: | HZT-300C Battery Powered Crimping Tool With Cutting |
Max. crimping force: | 42KN |
Stroke: | 25mm |
Crimping range: | 10-300 mm2 |
Cutting range: | MaxΦ30mm(Cu/Al cable,ACSR,wire rope) |
Battery: | 18v 4.0Ah Li-Ion |
Charging voltage: | AC 110V〜240V |
Charging time: | Approx. 0.5 hours |
Weight: | 2.58kgs(not include head and battery) |
OLED display： | display voltage, temperature, crimping times, errors information |
Accessories: | |
Crimping die (mm2): | 10.16.25.35.50.70.95.120.150.185.240.300 |
Crimping dies: | 12 sets |
Battery: | 2 pcs |
Charger: | 1 pcs |
Shoulder strap: | 1 pc |
Plastic case: | 1 pc |
