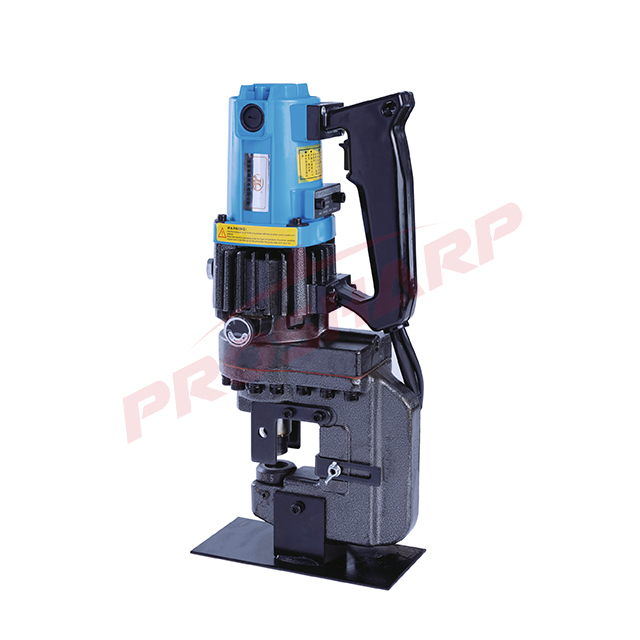

JP20-100 Electric punching machine short style

Motor power: 1200W
Punching die: Round die
Max. piercing dia.: 20.5mm
Min. piercing dia.: 6.5mm
Max. sheet thickness: 6mm
Voltage: 110V/220V/230V
Punching speed: 2-3S
Net weight: 15KG
Gross weight: 17KG
Height: 42cm

Availability:
Quantity:

Electro hydraulic punching tool description: Suitable for iron, copper, aluminum, forming steel, channel steel, I-beam drilling operations, small size, light weight, easy to operate, labor-saving and rapid punching other advantages. This model is electro-hydraulic punching tool; Suitable for punching iron, copper, aluminum and other metal materials; Punching speed, positioning accuracy is not offset; Can make punching die of various shapes; Hydraulic punching can exempted chips produced during drilling are safer and cleaner during operation. They can be carried to the site or fixed in the factory for large-volume punching operations. They are mainly used for dry-hanging holes in exterior walls, small space can work to advantage.


Model

JP20-100 Electric channel steel punching   machine  (short style)

Motor power

1200W

Punching die

Round die

Max. piercing dia.

20.5mm

Min. piercing dia.

6.5mm

Max. sheet thickness

6mm

Voltage

110V/220V/230V

Punching capacity

It is prohibited to punch the maximum aperture   and thickness shown in the table above (can punch angle iron, 6mm iron plate   and #10 channel steel)

Punching speed

2-3S

Net weight

15KG

Gross weight

17KG

Height

42cm
