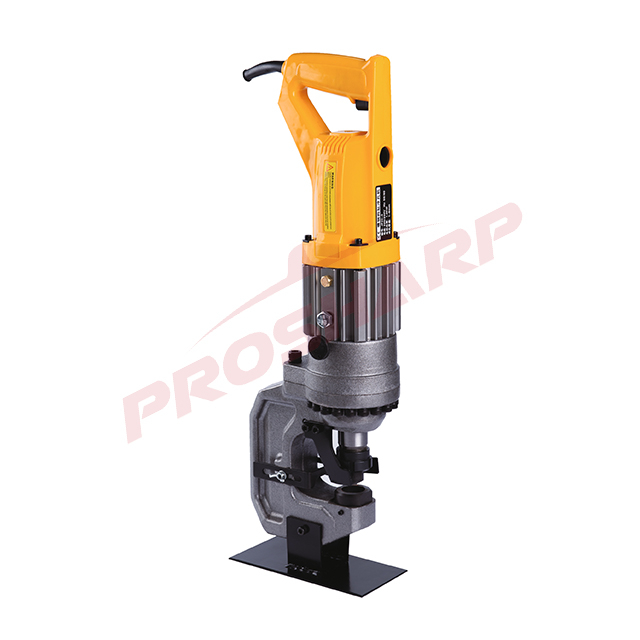

JP25-10 heavy duty electric punching machine

Motor power: 2000W
Punching die: Round die
Max. piercing dia.: 25mm
Min. piercing dia.: 6.5mm
Max. sheet thickness: 10mm
Voltage: 110V/220V/230V
Punching speed: 2-3S
Net weight: 12KG
Gross weight: 17KG
Height: 39cm

Availability:
Quantity:

Electrohydraulic punching tool description: Suitable for iron, copper, aluminum plate, section steel, channel steel, I-steel punching operations, small size, light weight, easy to operate, labor saving and fast punching advantages. This type of electrohydraulic punching tool; Suitable for punching iron copper aluminum bar and other metal materials; Fast punching speed, accurate positioning does not offset; Can make various shapes of punching die; Hydraulic punching can eliminate the chip produced when drilling, the operation is safer and cleaner; Can be carried to the site or fixed in the factory for mass punching operations; Mainly used in the external wall dry hanging punching, small space can work advantage.


Model

JP25-10 Electric punching machine

Motor power

2000W

Punching die

Round die

Max. piercing dia.

25mm

Min. piercing dia.

6.5mm

Max. sheet thickness

10mm

Voltage

110V/220V/230V

Punching capacity

It is prohibited to punch the maximum   aperture and thickness shown in the table above (angle iron and 10mm iron   plate)

Punching speed

2-3S

Net weight

12KG

Gross weight

17KG

Height

39cm
