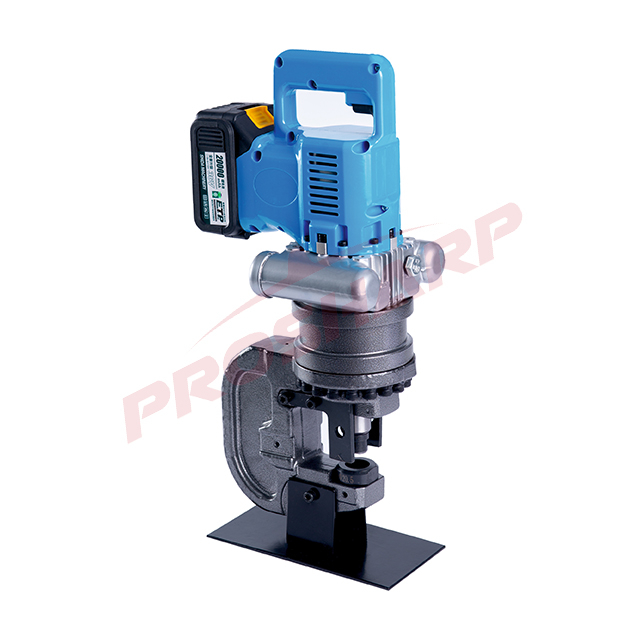

LD20 hydraulic hole battery punching machine

Motor power: 1200W
Punching die: Round die
Max. piercing dia.: 20.5mm
Min. piercing dia.: 6.5mm
Max. sheet thickness: 6mm
Voltage: 110V/220V/230V
Punching speed: 2-3S
Net weight: 12KG
Gross weight: 17KG
Height: 39cm

Availability:
Quantity:

LD20 Lithium electric hydraulic punching machine



Lithium electric hydraulic punching tool description: large capacity lithium battery, multiple intelligent protection function lasting endurance, high power motor, strong power at the same time more quiet, easy to carry, suitable for iron, copper, aluminum plate, section steel, channel steel, I steel drilling operations, small volume, light weight, easy to operate, labor saving and fast punching advantages. Accurate positioning without deviation; Can make various shapes of punching die; Hydraulic punching can eliminate the chip produced by drilling, safe, stable and cleaner operation; Can be carried to the site for punching operations; Mainly used in the external wall dry hanging punching, small space can work advantage.


Model

LD20 lithium   angle steel punching machine

LD20 lithium   channel steel punching machine

LD20 lithium   four-cylinder channel steel punching machine

Motor power

1200W

1200W

1200W

Punching die

Round die

Round die

Round die

Max. piercing dia.

20.5mm

20.5mm

20.5mm

Min. piercing dia.

6.5mm

6.5mm

6.5mm

Max. sheet thickness

6mm

6mm

6mm

Voltage

110V/220V/230V

110V/220V/230V

110V/220V/230V

Punching capacity

It is   prohibited to punch the maximum aperture and thickness shown in the table   above (angle iron and 6mm iron plate)

Punching speed

2-3S

2-3S

2-3S

Net weight

12KG

12KG

12KG

Gross weight

17KG

17KG

17KG

Height

39cm

39cm

39cm
